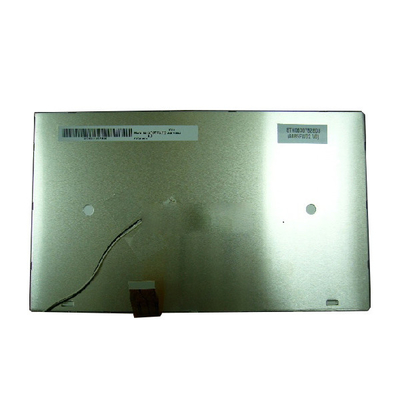

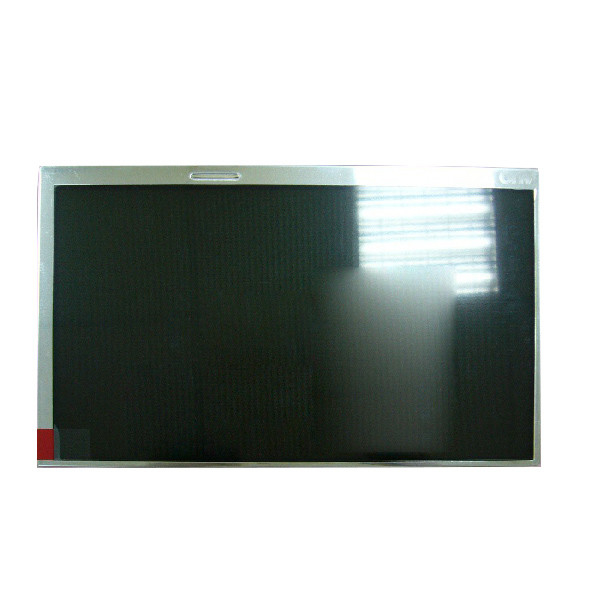

A085FW02 V0 touch screen panel LCD display TFT Module
Datos del producto:
| Lugar de origen: | China |
| Nombre de la marca: | AUO |
| Número de modelo: | A085FW02 V0 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 PCS |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | Empaquetado original/caja de empaquetado convencional |
| Tiempo de entrega: | 7 días |
| Condiciones de pago: | T/T, Western Union |
| Capacidad de la fuente: | 100000 unidades/unidades por mes |
|
Información detallada |
|||
| Modelo P/N: | A085FW02 V0 | Tamaño diagonal: | 8,5" |
|---|---|---|---|
| Resolución: | 480 (RGB) ×234, 63PPI | Área activa: | 187,2 (H)×105.3 (V) milímetro |
| Tamaño del esquema: | 199 (W)×119 (H) milímetro | Brillo: | ² de 250 cd/m (tipo.) |
| Coeficiente de contraste: | 300 : 1 (típ.) (TM) | Uso: | Reproductore de DVD portátil del marco de la foto de Digitaces |
Descripción de producto
A085FW02 V0 touch screen panel LCD display TFT Module
A085FW02 V0 Product details :
| AUO LCD SCREEN A085FW02 V0 | |
| Panel Brand | AUO |
| Model Name | A085FW02 V0 |
| Screen size | 8.5inches |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 480(RGB)×234, 63PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 187.2(H)×105.3(V) mm |
| Outline | 199(W)×119(H) mm |
| Surface | Antiglare |
| Brightness | 250 cd/m² (Typ.) |
| Contrast | 300:1 (Typ.) (TM) |
| Work Mode | TN, normally white display, transmissive |
| Viewing angle | 65/65/50/65 (Typ.)(CR≥10) |
| Response | 12/18 (Typ.)(Tr/Td) |
| Color Depth | Full color |
| Backlight type | 6S1P WLED, 10K hours, without driver |
| Screen weight | 192±10g |
| Used for | Digital Photo Frame Portable DVD Player |
| Touchscreen | Without |
| Signal Type | TFT Specific Analog RGB, 26 pins, FPC |
| Supply voltage | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| Maximum | Working: -10 ~ 60 °C; Storage: -20 ~ 70 °C |
| A085FW02 V0 touch screen panel LCD display TFT Module | |
A085FW02 V0 Welcome to our shop!
We provide low price and high quality products and most satisfactory services
If you need to purchase a large number of products, please contact us, the price can give the lowest price, let's happy together .
A085FW02 V0 Payment and Tax:
1.Alipay is perferred and safety
2.Product being shipped outside of China will incur import duties taxes and charges etc.Those fees are not covered by either price or shipping charges of product,and are responsibility of recipient.
A085FW02 V0 About Shipping:
We will test them strictly before shipping.
We will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
A085FW02 V0 FAQ:
Q: Can You declare my order of A085FW02 V0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of A085FW02 V0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of A085FW02 V0 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of A085FW02 V0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
A085FW02 V0 Shipping and Package :
